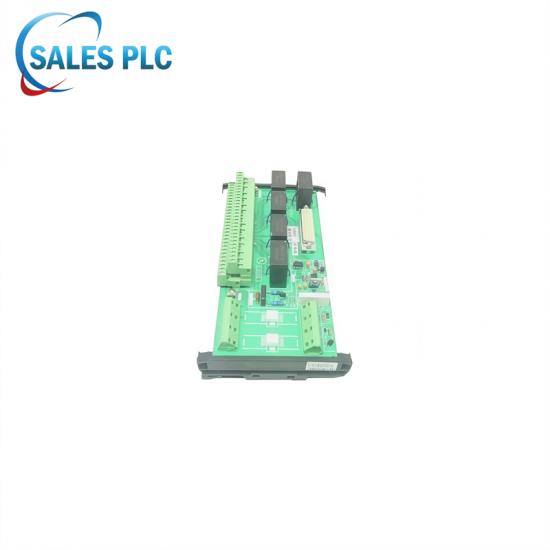

The A5E32168144 is the system interface card (PCA) in the Siemens SIMOTRAS HD/SINAMICS PERFECT HARMONY (GH180/NXGPro) medium-voltage inverter cabinet. It is also often referred to as the static sequence control board or cell control PCA. This card is installed inside the power unit (cell) and communicates with the upper control board via optical fiber or cable.
Product Status
Original New // Ready in Stock // Same Days Shipping
Contact me now
→ |Sales Manager: Channy
→ |Email: sales5@mooreplc.com
→ |Mobile/Whatsapp: +86 15359408275
→ |Wechat: 15359408275
Product info
Part Number: A5E32168144
Brand/ Manufacturer: SIEMENS
Product Description: PCB Circuit Board
Condition: In stock
Country of Origin: Germany
Shipping port: Xiamen, China
Warranty: 12 months
Input power: 15 V DC ±5%, provided by the unit's DCR power board.
Power consumption: < 3 W.
Fiber optic communication: 1 HFBR transceiver, 2 MBd speed with the main control board.
Analog sampling: Bus voltage 0–1200 V, accuracy ±1% F.S.; Temperature: 10 kΩ NTC, 12-bit ADC.
IGBT driver: 4 channels, ±15 V gate voltage, 2 A peak, short-circuit/undersaturation protection.
Bypass: Onboard SCR trigger circuit, 400 A thyristor (external).
Fault detection: Overvoltage, undervoltage, overtemperature, driver undersaturation, fiber break.
Status indication: 4 green LEDs: Power/Run/Bypass/Fault.
Isolation: 2.5 kV AC, fiber fully isolated from high-voltage areas.
Operating temperature: –25 to +60°C (unit internal air cooling).
Storage temperature: –40 to +70°C.
Relative humidity: 5 to 95%. RH non-condensing
Protection rating IP20 (installed in unit drawer)
Dimensions 120 × 85 × 25 mm (bare board)
Weight ≈ 0.18 kg
