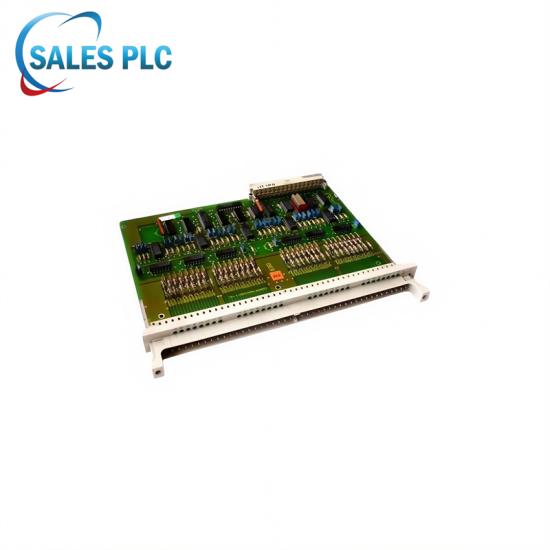

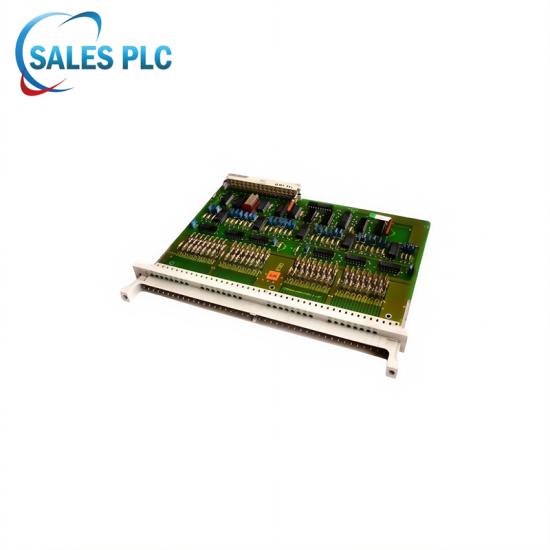

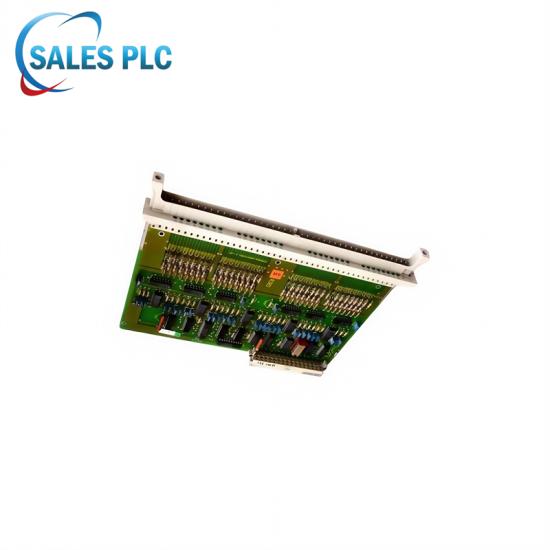

The 6DD7050-0AA50 is a high-speed measurement processor module. It directly acquires ±10 V or 0/4–20 mA analog signals through eight parallel differential inputs. Equipped with a built-in 16-bit A/D converter and DSP processing unit, it performs real-time calculations of RMS, power, and harmonics within a 100 µs cycle, providing raw data and characteristic values for highly dynamic closed-loop applications such as transmissions, rolling mills, and power grid monitoring.
Product Status
Original New // Ready in Stock // Same Days Shipping
Contact me now
→ |Sales Manager: Channy
→ |Email: sales5@mooreplc.com
→ |Mobile/Whatsapp: +86 15359408275
→ |Wechat: 15359408275
Product info
Part Number: 6DD7050-0AA50
Brand/ Manufacturer: SIEMENS
Product Description: Measuring Processor Module
Condition: In stock
Country of Origin: Germany
Shipping port: Xiamen, China
Warranty: 12 months
Channels: 8 analog inputs, differential, parallel sampling
Input range:
Voltage: ±10 V, input impedance 1 MΩ
Current: 0/4–20 mA, input impedance 50 Ω (software switchable)
Resolution: 16-bit ADC (1 LSB = 0.305 mV or 0.61 µA)
Sampling period: 100 µs (10 kHz), selectable 50 µs (20 kHz)
Real-time calculations: RMS, active/reactive power, power factor, THD (≤ 31 times)
Voltage: ±0.1 % FS
Current: ±0.1 % FS
Frequency: ±0.01 % FS
Channel-to-system: 500 V AC
Channel-to-channel: No isolation
Communication interface:
PROFIBUS-DP (12 Mbit/s) slave, 1 ms cycle
Parallel I/O bus (internal to the TDC rack, for µs-level synchronization)
Data update: ≤ 1 ms to the host CPU, ≤ 100 µs to the TDC rack
Diagnostics: Channel open/short circuit, overvoltage/undervoltage, A/D fault, temperature alarm
Power supply:
24 V DC ±20%, typical 5 W
Field loop power supply: Supplied by external 24 V DC
Operating temperature: 0°C to +60°C
Storage temperature: -40°C to +70°C
Relative humidity: 5% to 95% RH (non-condensing)
