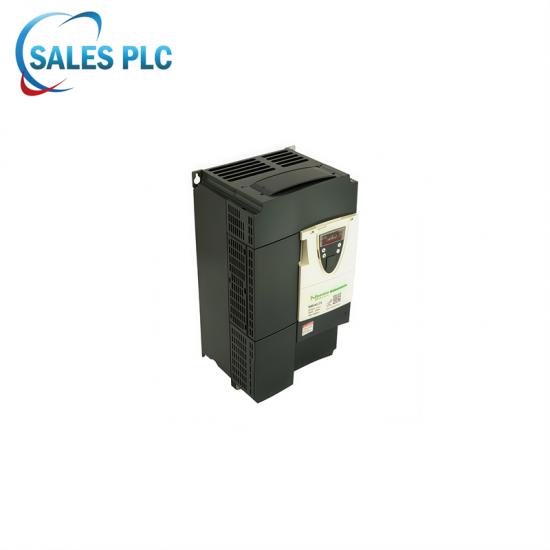

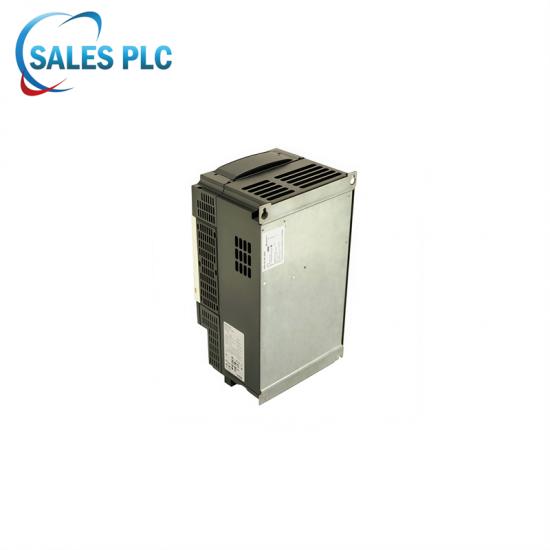

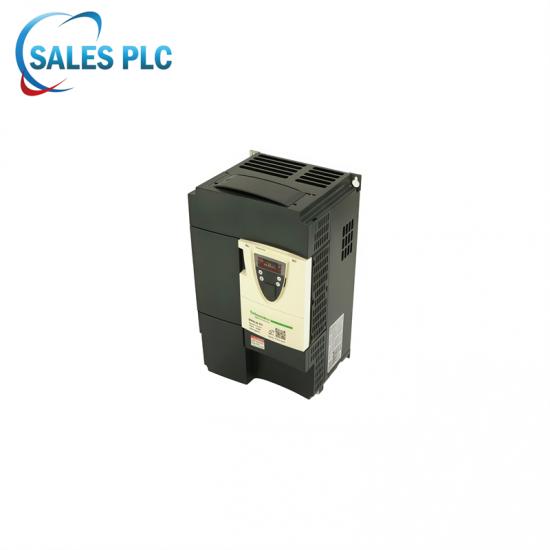

The Schneider ATV71HC13N4 is a high-performance cabinet-type inverter from the Altivar 71 series, designed for heavy-duty, complex machinery up to 132 kW (200 hp). It features a built-in Class C3 EMC filter and graphic terminal, and comes standard with a reinforced coated PCB and heat sink. It can be directly wall-mounted or installed in a cabinet, and is suitable for high-dynamic, high-overload applications such as lifting, conveying, textile, and papermaking.
Product Status
Original New // Ready in Stock // Same Days ShippingContact us
|
Sales Manager: Channy |
||
|
|
Mobile/Whatsapp |
|
|
15359408275 |
||
Product Description
Brand/ Manufacturer: Schneider
Model Number: ATV71HC13N4
Product Type: Variable Speed Drive
Condition: In stock
Shipping port: Xiamen
Warranty: 12 months
Applicable motor power: 132 kW / 200 hp (380…480 V three-phase)
Rated output current: 259 A @ 2.5 kHz (380/460 V)
Overload capacity: 150% for 60 s; 220% for 2 s every 10 minutes
Input voltage: three-phase: 380…480 V ±10%
Input frequency: 47.5…63 Hz
Output frequency: 0.1…500 Hz
Control mode: Sensorless/closed-loop flux vector control, ENA energy-saving algorithm, 2-point/5-point V/F
Speed range: 1:100 (open-loop); 1:1000 (closed-loop encoder)
Speed accuracy: ±0.01% of rated speed (closed-loop)
Torque accuracy: ±5% closed-loop; ±15% open-loop
Protection rating: IP20 (top panel up to IP41)
EMC filter: Built-in Class C3, 50 m motor cable
Cooling method: Forced air cooling, hot-swappable fan
Braking capacity: Built-in braking unit, maximum 30% rated power; external resistor ≥150%
I/O: 6 DI, 3 AI (including ±10 V differential), 2 AO, 3 relay outputs
Communications: Modbus/CANopen standard; EtherNet/IP, PROFIBUS, DeviceNet, etc. optional
Graphic terminal: Plain text in Chinese, navigation knob, parameter cloning, fault logging
Safety function: STO (Safe Torque Off), SIL3/PLe
Ambient temperature: -10°C…+50°C without derating; derating up to +60°C
Altitude: No derating up to 1000 m; derating of 1% per 100 m above 1000 m
Dimensions (approximately): 1022 mm × 360 mm × 377 mm (H × W × D)
Weight (approximately): 90 kg
