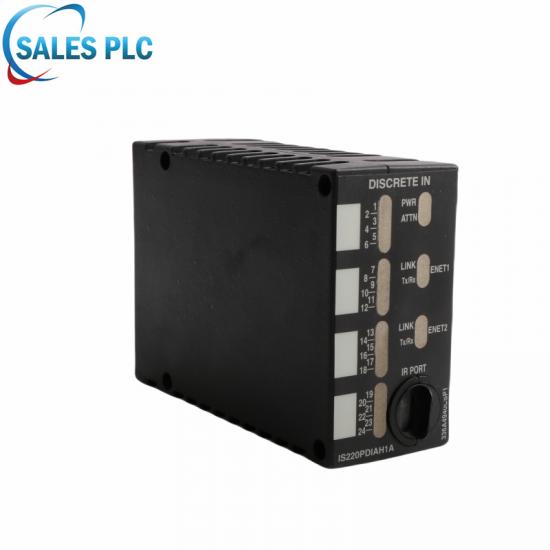

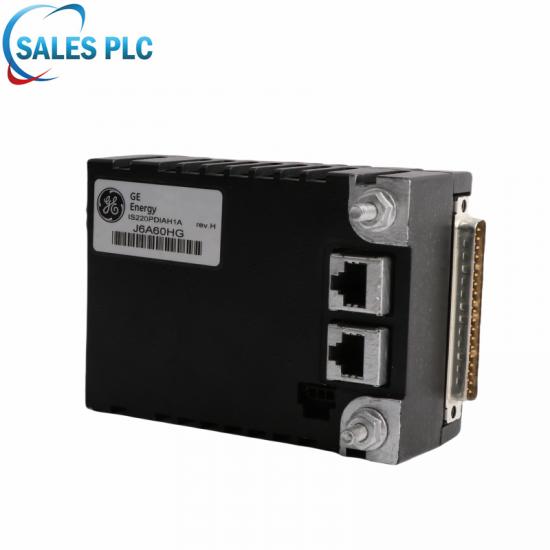

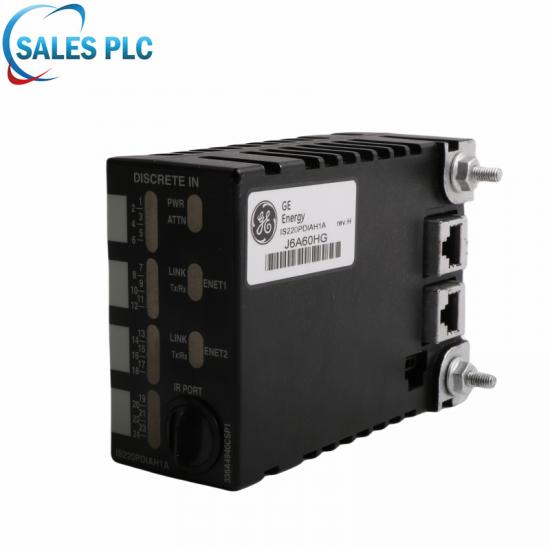

The IS220PDIAH1A is an I/O pack that has two Ethernet ports. It is a critical component of the GE Speedtronic MK VI gas turbine control series. This pack is described as a discrete input-output pack and can be used with other terminal boards.manufactured and designed by General Electric as part of the Mark VIe Series used in GE Distributed Turbine Control Systems.
Product Status
Original New // Ready in Stock // Same Days ShippingGE IS220PDIAH1A DISCRETE CONTACT INPUT TERMINAL BOARD Specification
Core Processing Units:Quad-core CPU
Operating Frequency:Up to 2GHz
Memory Capacity:1GB DDR3 SDRAM
Flash Memory:16MB SPI Flash
Input/Output Channels:48 digital I/O, expandable up to 256 channels
Communication Interfaces:Ethernet, USB, RS-485
Power Supply:12-48V DC
Operating Temperature:-20°C to +60°C
Enclosure Rating:IP20
Dimensions:178mm x 110mm x 78mm
Weight:0.75kg
Demi is always online！welcome to call for inquiry！
|
Sales Manager: |
Demi Li |
|
Email: |
|
|
Mob/Whatsapp/Wechat : |
|
|
Skype: |
About the GE IS220PDIAH1A DISCRETE CONTACT INPUT TERMINAL BOARD
COMPATIBILITY:
PDIAH1A is compatible with five types of discrete contact input terminal boards, including the TBCI boards, TICI boards, and STCI boards, but not the DIN-rail mounted DTCI board. Control mode refers to the number of I/O packs used in a signal path:
One I/O pack and one or two network connections are used in Simplex.
Dual uses two I/O packs with one or two network connections.
Three I/O packs with one network connection each are used by TMR.
INSTALLATION:
Securely mount the desired terminal board.
Directly plug one PDIA I/O pack for simplex or three PDIA I/O packs for TMR into the terminal board connectors.
Mechanically secure the packs using the threaded studs adjacent to the Ethernet ports. The studs slide into a mounting bracket specific to the terminal board type.
The bracket location should be adjusted such that there is no right-angle force applied to the DC37 connector between the pack and the terminal board.
The adjustment should only be required once in the life of the product.
Plug in one or two Ethernet cables depending on the system configuration.
The pack will operate over either port. If dual connections are used, the standard practice is to connect ENET1 to the network associated with the R controller.
Apply power to the pack by plugging in the connector on the side of the pack.
It is not necessary to insert this connector with the power removed from the cable as the I/O pack has inherent soft-start capability that controls the current inrush on the power application.
Labeled as a Discrete I/O Pack the IS220PDIAH1A model is used in the Mark VI Series alongside the YDIA Discrete Input Module as well. Several different associated terminal boards can be used with the PDIA model which includes the following:
IS200TBCIH4C
IS200STCIH1A
IS200STCIH8A
IS200TBCIH2C
IS200TCIH2A
