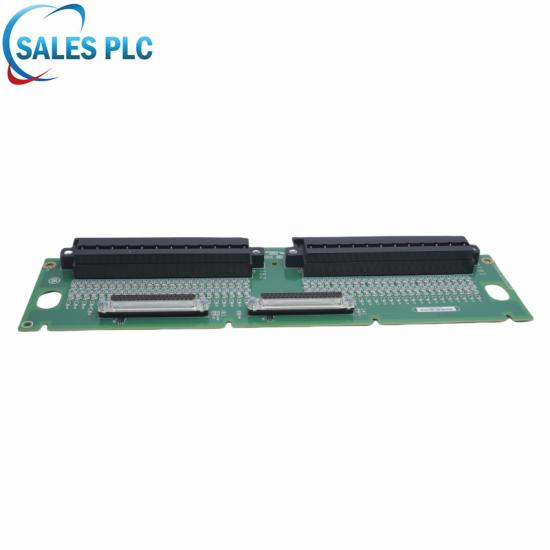

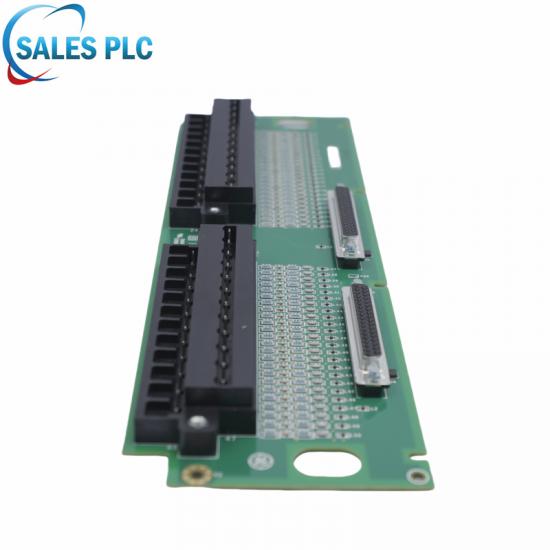

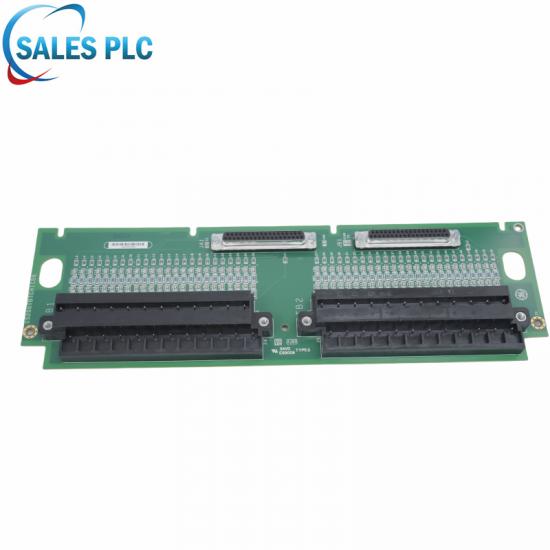

GE IS200TBTCH1CBB Thermocouple Terminal Board

GE IS200TBTCH1CBB Thermocouple Terminal Board
GE IS200TBTCH1CBB Thermocouple Terminal Board
GE IS200TBTCH1CBB Thermocouple Terminal Board

GE IS200TBTCH1CBB Thermocouple Terminal Board

The IS200TBTCH1CBB product is a Thermocouple Terminal Board manufactured by General Electric for use in their EX2100 Excitation Control Series. This terminal board is modified through its inclusion of three significant revisions.The IS200TBTCH1CBB Thermocouple Input Termination Board is a key component in any industrial control system that requires accurate thermocouple signal conversion. Its rugged design ensures reliability in applications in a variety of industrial environments.



  • Product Status

    Original New // Ready in Stock // Same Days Shipping
Inquiry now
Description

GE IS200TBTCH1CBB Thermocouple Terminal Board Specification

Manufacturer:GE Industrial Systems
Series:EX2100
Part Number:IS200TBTCH1CBB
Functional Acronym:TBTC
Functional Description:Themocouple Terminal Board
PCB Coating Conformal Coating
Functional Revision 1 C
Functional Revision 2 B
Artwork Revision B


Demi is always online！welcome to call for inquiry！


Sales Manager:

Demi Li

Email:

sales8@askplc.com

Mob/Whatsapp/Wechat :

+86 18030235312

Skype:

+86 18030235312


About the GE IS200TBTCH1CBB Thermocouple Terminal Board


This IS200TBTCH1CBB General Electric printed circuit board was originally manufactured for their special EX2100 Excitation Control System Series, and as such; was actually mass-produced by General Electric subsidiary manufacturer GE Industrial Systems. This printed circuit board or PCB for short is actually a modified version of the preexisting IS200TBTCH1 parent PCB product, also a member of this EX2100 Series. This product sports two functional revisions and a singular configuration artwork revision, and can be more explicitly defined by its factory-specified functional description as a thermocouple terminal board.

Hardware Tips and Specifications

This IS200TBTCH1CBB Thermocouple terminal printed circuit board is unique in a number of hardware specifications, configurations, and inclusions. With this being said, it is important to recognize that this IS200TBTCH1CBB PCB, like any other in the EX2100 Excitation Control System Series, has a specified range of intended applications that contextualize its hardware choices well. For starters, this PCB's primary intended function is its providing of 24 unique thermocouple outputs to the greater VTCC Thermocouple Processor Board assembly. Additional performance specifications for this IS200TBTCH1CBB Thermocouple Processor Board include its high frequency noise suppression and cold junction reference processing applications.

Now that the function of this IS200TBTCH1CBB PCB has been explored, its specific hardware components and component configuration can be contextualized. All 24 of the different thermocouple inputs accepted by this TBTC-abbreviated circuit board interface with this PCb through its two terminal blocks, which are affixed to the IS200TBTCH1CBB base board by the use of two screws per terminal block. These terminal blocks are pluggable for installation and maintenance purposes, and accept up to two total #12 style AWG wires with voltage maximum ratings of 300 volts.
