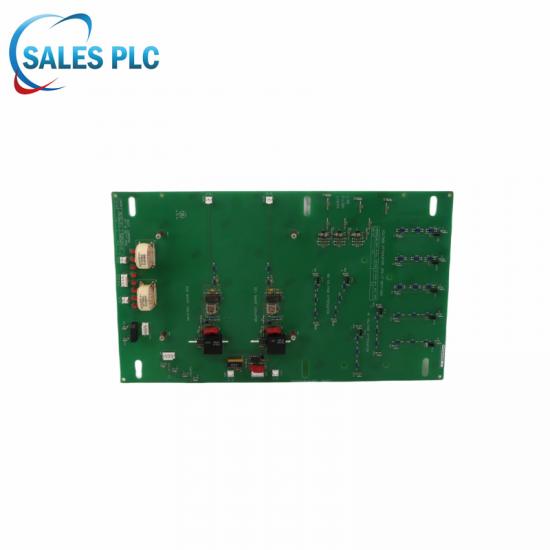

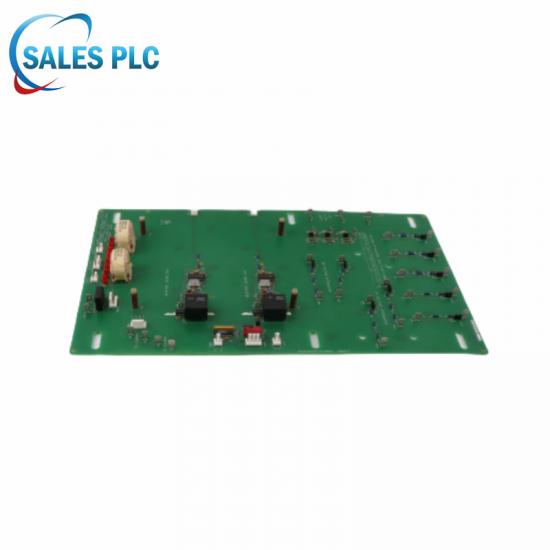

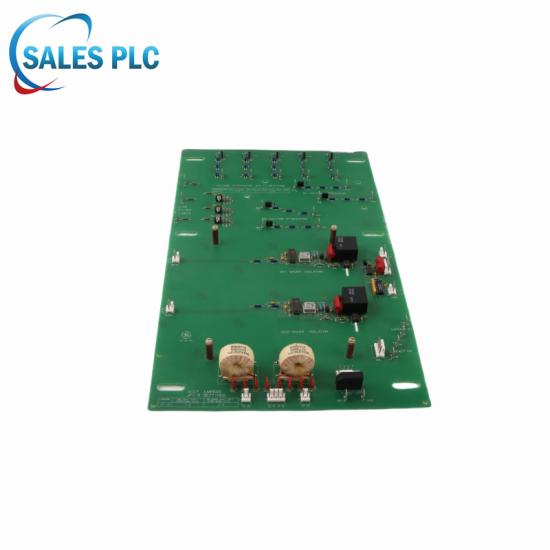

GE DS200SHVIG1BGD SCR High Voltage Interface Board

IS200ERSDG1A  SPECIFICATIONS

Welcome to contact Demi！

➪Email : sales8@askplc.com

➪ Tel : 86+18030235312

➪Skype :86+18030235312

➪ whatsapp/WeChat : 86+18030235312

About the DS200SHVIG1BGD

General Electric’s DS200SHVIG1BGD is a Mark V series SCR high voltage interface board. Members from that Mark V Turbine Control System series can be easily mounted into an array of GE brand drives. The Mark V Series that this DS200SHVIG1BGD printed circuit board belongs to, as indicated by the above-included full extended series name, has specific applications in the management and control systems of GE-compatible wind, gas, or steam turbine automated drive assemblies. With this DS200SHVIG1BGD PCB's Mark V Series' newer-developed applications existing, it still must be considered to exist as a now-obsolete legacy product series, as its production was discontinued by General Electric in one of the many years past its initial product series release. With this being known, the Mark V Turbine Control System Series is still considered quite the desirable General Electric Mark product series, as it exists as one of the final-developed product series to make use of the patented Speedtronic control system technology first introduced alongside the rollout of the Mark I Series in the mid to later 1960s. This DS200SHVIG1BGD product offering is actually not the originally-developed product of its specific Mark V Series functional role; that would be the DS200SHVIG1 parent SCR High Voltage Interface Board missing this DS200SHVIG1BGD PCB's full three-fold revision table.

Hardware Tips and Specifications

The primary purpose of this board is to act as an interfacing platform between the systems SCR bridge and the power supply. Signals can be communicated to and from the drive’s current power connect card (PCCA), instrumentation card, and the power supply. Voltage signals that are fed to the board are converted and transmitted using this board. Voltages that range between -500 mV and 500 mV can be processed by the card. These mV inputs are converted by DS200SHVIG1BGD into differential frequencies ranging between 0 ando 500 kHz. These new frequencies are then received by the drive’s power supply from the card. Both user configuration and experience are a key design feature of this card. The card includes seventeen individual jumpers that can be configured to the user’s requirements. Each jumper adds additional attenuation capabilities to the board. 10:1 current transformers are found on all of the jumpers. Three onboard LED indicator lights will visually alert uses if any filter fuses on board blow. Generally, this DS200SHVIG1BGD Mark V Series product offering's voltage suppression and limitation strategy involves its normal Mark V Series' standardized selection of voltage-limiting hardware components and component specifications, including a set of normal capacitors, resistors, diodes, and specialized integrated circuits.

Frequently Asked Questions about DS200SHVIG1BGD

Does DS200SHVIG1BGD have jumpers?

Yes, DS200SHVIG1BGD has berg-type jumpers that are identified by a JP or BYP nomenclature on DS200SHVIG1BGD. These jumpers on DS200SHVIG1BGD are used for manufacturing test or customer options.

Where is DS200SHVIG1BGD mounted?

DS200SHVIG1BGD is mounted on the drive's SCR cell assembly. DS200SHVIG1BGD is mounted on six nylon standoffs and six nuts are used to secure DS200SHVIG1BGD to the standoffs.

Does DS200SHVIG1BGD provide attenuation?

Yes, DS200SHVIG1BGD provides attenuation of both line and bridge voltages for DS200SHVIG1BGD.

What is the manual for DS200SHVIG1BGD?

The manual for DS200SHVIG1BGD is the GE Drive Systems Configurable Hardware for SHVI SCR High Voltage Interface Board Manual - Manual GEI-100160. If needed, we can send you this manual for DS200SHVIG1BGD via hard-copy manual or manual link.
